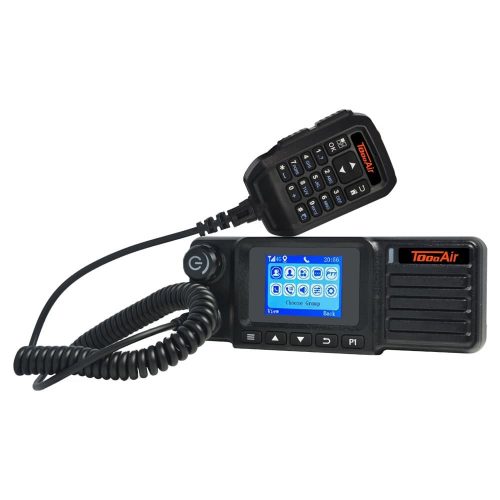

TA-995 Mobile

  • PTToC 3G/4G & 4GX – 98% Coverage
  • Distortion free sound quality – Large 3W front speaker
  • Dual Band PTToC & 80 Channel UHF CB
  • Dedicated SOS – Alert all users or dispatch
  • GPS Receiver Built-In
  • Display menu icons Numerical 0 – 9 keypad microphone
  • 39 Pre-programmable commercial UHF channels

TA-995 Mobile –

Wide Area Coverage

 The TA-995 connects into the huge Telstra 3G/4G and 4GX cellular network and with the added external antenna the TA-995 offers the best coverage of any PTToC on the market.

Group Call (One to Many)

User can select preprogrammed groups and instigate a group call and talk to all members of the group. User can also be part of multiple groups and choose the group it belongs to

Individual Private Call (One to One)

 User can select an individual radio or the dispatcher and perform a one on one private call outside the group.

Internal GPS Engine

 The internal GPS engine reports its position every 60 seconds to the dispatcher (Programmable). GPS acquisition status is shown on the radio LCD display.

Enhanced Sound Quality

The TA-995 has a powerful front facing 3W speaker. Sound adjustments including speaker and microphone gain settings and the ability to choose between a 4K and 8K voice codec.

Dedicated SOS

 A dedicated SOS button that when held in for 3 seconds sends an alert to all other units and the dispatcher. An audio alarm and street level location is immediately displayed on the dispatch PC.

UHF Commercial

39 UHF dealer programmable frequencies from 400 to 480Mhz with CTCSS and DCS, BCL, Hi/ Lo Power, Roger beep, Frequency + Channel display, ToT and Scan.

Keypad Microphone

Numerical 0 – 9 keypad for direct channel access, channel selection and 3 digit user select available.

UHF CB (477Mhz)

80 Channel with CTCSS/ DCS, Hi/Lo Power, Duplex and Scan.

General

Colour Black
Dimensions 190mm x 135mm x 72mm
Weight 940g
Working Temperature -30° to +75°
Working Voltage 12V ~ 24V
Current
Working Current: 500mA @ LTE
220mA @ WCDMA
Idle Current: 150mA
Peak Current: 3A
Audio Output 3W
LTE FDD Band 1/2/3/5/7/8/28A/28B/40
WCDMA Band 1/5
Maximum Output LTE: 23dBm ± 2.7dBm (Power Class 3)
WCDMA: +24dBm +2.5dBm / -1.5dBm (Power Class 3)
Receiving Sensitivity LTE FDD: ≤-100 dBm
WCDMA 850: ≤-108 dBm
WCDMA 1900: ≤-109 dBm
GPS GPS Positioning, 1.57542GHz
Sensitivity Catch -144dBm, Track -159dBm
Data Speed LTE FDD-Uplink 50 Mbps / Downlink 150 Mbps
WCDMA-Uplink 5.76 Mbps / Downlink 42 Mbps
Protocol Support embedded TCP& UDP Protocols Support Protocols PAP and CHAP used for PPP connection
3GPP TS27.005,27.007
UHF Spectrum 400MHz – 480MHz
Channel Space 25 / 12.5KHz
Frequency Stability ± 2.5 ppm
Band Width Wide / Narrow
Transmit Power 10W (Max 5W CB Only)
Modulation 16KΦF3E / 11KΦF3E
Spurious Emissions ≤36dBm / ≤36dBm
Adjacent Channel Power ≥70dB / ≥60dB
RF Sensitivity 12dB SINAD ≥0.20µV / ≥0.20µV
Adjacent Channel Selectivity ≥60dB / ≥55d
Intermodulation Rejection ≥65dB / ≥60dB
Spurious Response ≥65dB / ≥65dB



Note: Due to continuous development, the above is subject to change without notice

Below are links to TA-995 Mobile documents:

User Manual for TA-995 Mobile

Brochure for TA-995 Mobile
