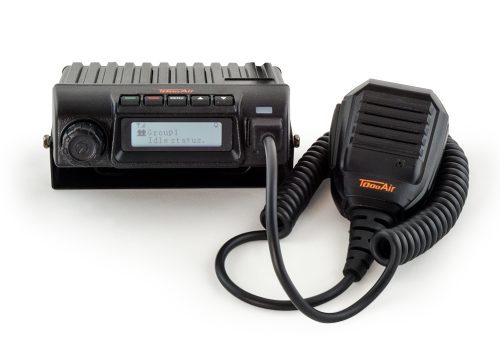

TA-300 Mobile

  • Reversible Display for console Mounting
  • Auto Dim Display
  • Build-In GPS Receiver
  • Separate GPS and 850Mhz supplied Antenna
  • Ignition Sense Switch On/Off
  • Heavy Duty Microphone
  • Signal Strength and GPS Indicators
  • 12 to 24 volt Supply (No Voltage reducer required)

The TA-300 is a fixed mount compact mobile designed to fit under-dash, in dash or adaptable to overhead console mounting with its reversible LCD display. Power sense auto switch-on ensures the user never forgets to activate the radio when starting the vehicle. The TA-300 is supplied with an in-vehicle 850Mhz antenna and separate active GPS antenna.

All ToooAir transceivers have built in GPS receivers that report position information to the dispatch console. The ToooAir platform is ideal for rental fleets with full over-air re-programming. With no ACMA spectrum licencing required, radios can be moved from fleet to fleet or new talk groups and operated anywhere in Australia.

General

Dimensions 118mm x 100mm x 38mm
Weight 420g Including Microphone
Working Temperature -30°C to +75°C
Working Voltage 9v ~ 24v DC
Current
Standby Current: 5mA
Average Current: 320mA
Peak Current: 780mA
Audio Output 1W
WCDMA 850MHz/1900MHz (Band 2 & 5)
GSM 850MHz/1900MHz
Output Power GSM/GPRS 850MHz (Power Class 4)
WCDMA Band 2 & 5 (Power Class 3)
Receiving Sensitivity WCDMA ≤ 106dBm
GPS 2.5m CEP 4.0m
Sensitivity Catch -148dBm, Track -145dBm
Data Speed GSM: UL 9.6kpds / DL 9.6kpds
WCDMA CS: UL 64kpds / DL 64kpds
WCDMA PS: UL 384kpds / DL 384kpds
Protocol HSDPA / WCDMA / EDGE / GPRS / GSM



Note: Due to continuous development, the above is subject to change without notice

Below are links to TA-300 Mobile documents:

User Manual for TA-300

Brochure ToooAir TA-300 Series
